Swienty Filling Station 70Ø Turntable & DANA MATIC 1000

In stock
SKU: 110896
$11,475.00 inc. GST

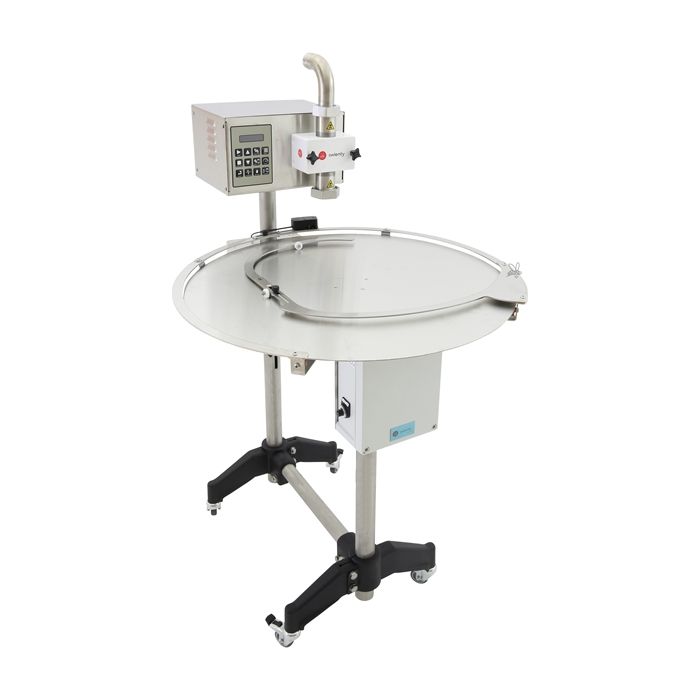

Complete Filling station Ø70
This cost-effective filling station, where the DANA api MATIC 1000 filling machine and an automatic filling table are combined into one unit.

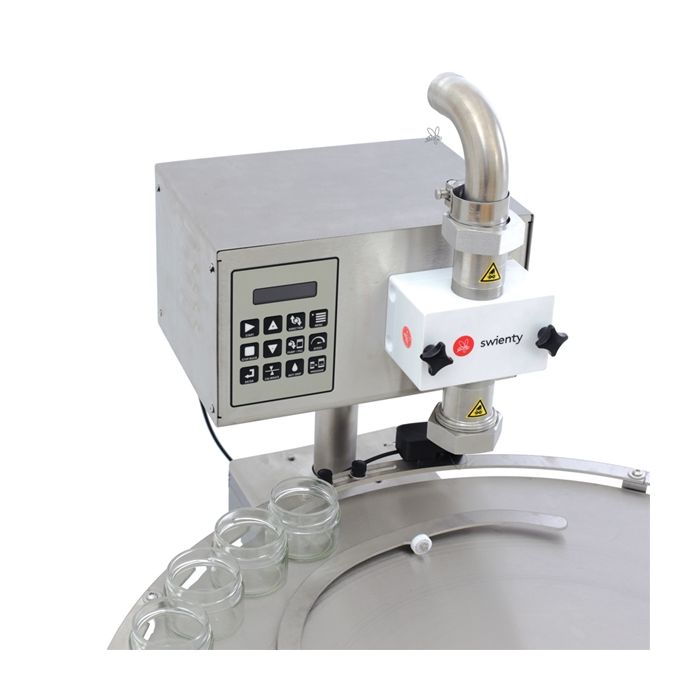

  • The DANA api MATIC 1000 is a filling machine with a gear pump
  • A strong low voltage DC motor drives the gear pump with the help of a helical gear box
  • The motor is controlled by computer-based electronics, which also ensures a perfect anti-drip function
  • The filling machine has 20 filling programs with settings for weight, calibration factor and other filling parameters
  • The machine works precisely and is easy to program for different substances
  • As a pump, the machine works both ways and can be set to different speeds
  • All parts that come into contact with the substance are made from food grade plastic or stainless steel and are easy to take apart and to clean
  • Empty jars are placed on the table top and then transported automatically through a rail to a wire switch
  • Once the jar hits the wire switch, the table stops and the filling machine starts filling the jar
  • Once the jar is filled the table starts turning again until the next jar arrives  the wire switch
  • The rail is very easy to adjust to different jars sizes
  • In this unit, the filling machine can be adjusted both horizontally and vertically to accommodate various jar sizes
  • This product needs to be assembled before use
  • An assembly manual is included, and assembly typically takes about 30 minutes

Fittings Included:

  • 110075 Foot pedal
  • 110059 Counterflow valve
  • 115815 Dosing syringe 0-60 ml
  • 500110F Nut for BS fitting 1½"
  • 110065C Complete cut-off-cross ø20
  • 110046 Legs
  • 110165 1½" / 38mm hose
  • 110110A 1½" bent BS fitting
  • 110175 1½" Hoseclamp

With the machine you receive spare parts set containing:

  • 2 x 110065D Cross-cut Ø20
  • 2 x 110072 Black rubber diaphragm
  • 2 x 500212 Gasket BS 1½
  • 2 x 502740 Handmountable nuts for pumphead
  • 2 x 508037 O-ring 37x2 NBR 70
  • 1 x 508082 O-ring 82x2 NBR 70

Various nozzles and fittings can be purchased.

Delivery times and shipping costs may vary; please contact us for a quote.
